Light takes Flight

A silhouette drawn from heritage, reimagined for tomorrow in featherweight carbon. FlyingV is a ride ahead of its time.

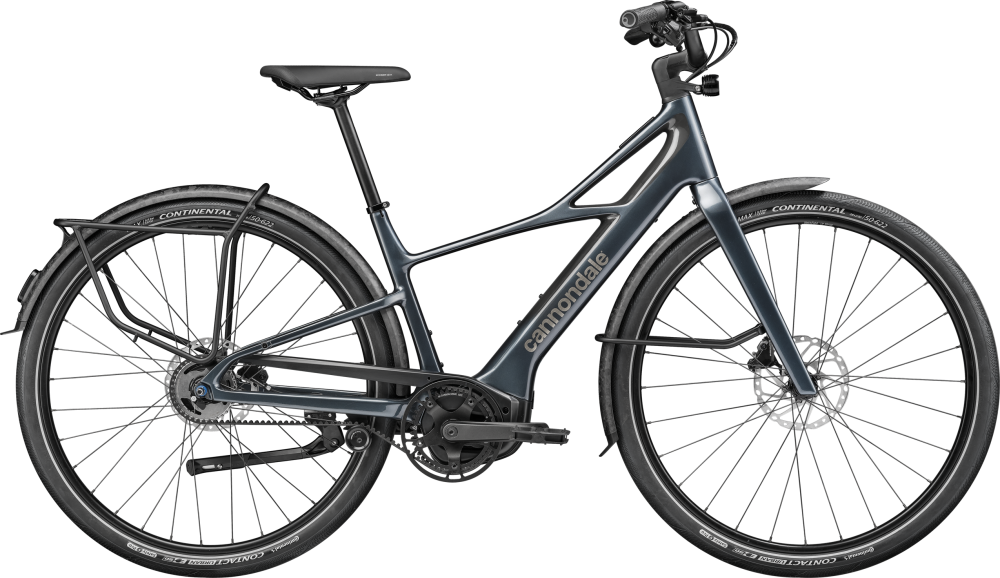

Fly through the city on our peerless lightweight urban e-bike, the FlyingV 2. Full carbon fiber frame, fork, and fenders keep the weight low, while Bosch’s Performance Line SX motor and 400Wh battery deliver effortlessly smooth power. A clean and quiet Gates belt-drive mates with Shimano’s Nexus 5 speed internal gear hub for flawless shifting, even while stopped. And a special SPC+ mount on the stem and our AppTag turns your smartphone into a connected dashboard for navigation and all your ride stats. Easy to ride, easy to carry. This isn’t just urban mobility, this is freedom on two wheels.

Highlights
Super-light carbon fiber frame and fork. Born from racing. Engineered for the city. Warrantied for life.
First-of-their-kind forged carbon fiber fenders - light, rigid, quiet, and as beautiful as they are unique.
Silky smooth power from Bosch’s Performance SX motor. Up to 60Nm of torque and 600 watts of output in a lightweight, easy-pedaling package.
Integrated Bosch CompactTube 400Wh battery - the ideal balance of effective range and minimal weight.
Proven Shimano Nexus Inter-5E 5-speed internal gear hub – smooth, reliable shifting while pedaling, coasting, or stopped.
Clean, quiet, and virtually maintenance-free, the Gates CDX Carbon Belt Drive is tops for urban cycling.

Batterie: Bosch CompactTube, 400Wh
Ladegerät: Bosch 2A
Display: Bosch LED Controller
Motor: Bosch Performance Line SX, Smart System, 60Nm, 600W max/250W nominal, 25km/h
Extras: Custom full-coverage carbon fiber fenders, Supernova Mini2 LDM front light and SuperNova TL3-Z rear light with integrated reflector, rear pannier rack (18kg), kickstand
Rahmen: FlyingV, lightweight carbon construction, internal downtube battery, integrated cable routing, 135mm dropout spacing, 1.5" headtube, flat mount disc, removable kickstand mount (40mm Pletscher-style), hidden holder for bluetooth tracking device (Chipolo, Airtag, etc)
Kurbelsatz: Samox Bosch E-bike, left 0 offset, right 13mm offset, w/ 46T Gates sprocket
Gabel: Flying V, lightweight carbon construction, 1.25 - 1.5" tapered steerer, flat mount disc, internal routing, 12x100 thru-axle
Kette: Gates CDX Center Track high-performance carbon belt, 128T
Bremsen: Shimano UR300 hydraulic disc, 180/180mm RT64 rotors
Bremshebel: Shimano MT201 hydraulic disc
Umwerfer hinten: Shimano Nexus Inter-5E, 5-speed internal gear hub
Kassette: Gates CDX, 36T
Lenker: Cannondale Urban Backsweep, 93mm rise, 24 degree sweep, 31.8 clamp, 700mm
Steuersatz: Integrated Sealed Bearing, tapered, internal cable routing
Griffe: Ergon GA3
Nabe: (F) Shimano TC500, 12x100mm thru-axle, centerlock / (R) Shimano Nexus Inter-5E, 5-speed internal gear hub, centerlock
Pedale: Cannondale Urban Platform
Reifen: Continental Contact Urban, 700x50c (50-622)
Felgen: Ryde, alloy, double wall, 32 hole, 25mm internal width, disc-specific
Speichen: DT Swiss Champion
Schalthebel: microSHIFT trigger-shift, 5-speed
Sattel: Selle Royal Essenza, Moderate Wide
Sattelstütze: Cannondale 3, 6061 Alloy, 31.6, 300mm (SM), 350mm (MD), 400mm (L & XL)
Lenkervorbau: Cannondale C1 Conceal, Alloy, 31.8, -6°, with SP-Connect SPC+ mount top cap
