Light takes Flight

A silhouette drawn from heritage, reimagined for tomorrow in featherweight carbon. FlyingV is a ride ahead of its time.

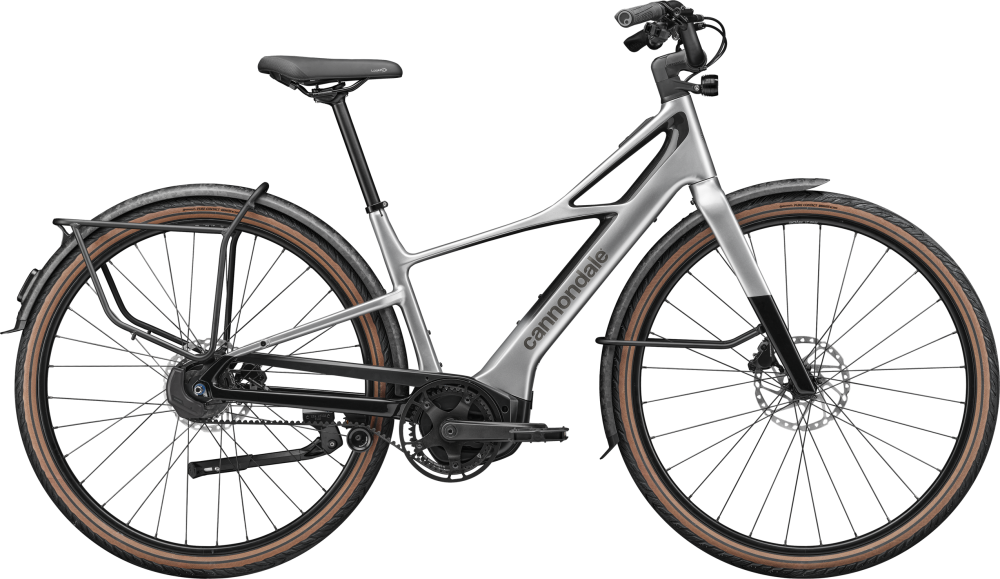

Elevate your urban riding with the ultimate lightweight e-bike, the FlyingV 1. Featherweight carbon fiber construction all the way through the fenders keeps it light. Bosch’s Performance Line SX motor and 400Wh battery deliver effortlessly smooth power, while the nimble handling and a comfortably upright riding position make it a blast to ride. Electronically-controlled shifting from Shimano’s top-end Nexus Di2 internal gear hub means perfect shifts every time. There’s even an option for fully automatic shifting if you like. And a phone clamp and our AppTag turns your smartphone into a connected dashboard for navigation and all your ride stats. Don’t just ride. Fly.

Highlights
Super-light carbon fiber frame and fork. Born from racing. Engineered for the city. Warrantied for life.
First-of-their-kind forged carbon fiber fenders - light, rigid, quiet, and as beautiful as they are unique.
Silky smooth power from Bosch’s Performance SX motor. Up to 60Nm of torque and 600 watts of output in a lightweight, easy-pedaling package.
Integrated Bosch CompactTube 400Wh battery - the ideal balance of effective range and minimal weight.
Shimano’s top-of-the-line Nexus Inter-5E Di2 5-speed internal gear hub - perfect electronic shifting every time, whether you are shifting or it is shifting automatically.
Clean, quiet, and virtually maintenance-free, the Gates CDX Carbon Belt Drive is tops for urban cycling.

Batterie: Bosch CompactTube, 400Wh
Ladegerät: Bosch 2A
Display: Bosch System Controller w/ Mini Remote
Motor: Bosch Performance Line SX, Smart System, 60Nm, 600W max/250W nominal, 25km/h
Extras: Custom full-coverage carbon fiber fenders, Supernova Mini2 LDM front light and Supernova TL3-Z rear light with integrated reflector, rear pannier rack (18kg), kickstand
Rahmen: FlyingV, lightweight carbon construction, internal downtube battery, integrated cable routing, 135mm dropout spacing, 1.5" headtube, flat mount disc, removable kickstand mount (40mm Pletscher-style), hidden holder for bluetooth tracking device (Chipolo, Airtag, etc)
Kurbelsatz: Samox Bosch E-bike, left 0 offset, right 13mm offset, w/ 46T Gates sprocket
Gabel: Flying V, lightweight carbon construction, 1.25 - 1.5" tapered steerer, flat mount disc, internal routing, 12x100 thru-axle
Kette: Gates CDX Center Track high-performance carbon belt, 128T
Bremsen: Shimano UR300 hydraulic disc, 180/180mm RT64 rotors
Bremshebel: Shimano MT201 hydraulic disc
Umwerfer hinten: Shimano Nexus Inter-5E Di2 electronic 5-speed internal gear hub
Kassette: Gates CDX, 36T
Lenker: Cannondale Urban Backsweep, 93mm rise, 24 degree sweep, 31.8 clamp, 700mm
Steuersatz: Integrated Sealed Bearing, tapered, internal cable routing
Griffe: Ergon GA3
Nabe: (F) Shimano TC500, 12x100mm thru-axle, centerlock / (R) Shimano Nexus Inter-5E Di2 electronic 5-speed internal gear hub, centerlock
Pedale: Cannondale Urban Platform
Reifen: Continental Pure Contact, 700x50c (50-622)
Felgen: Ryde, alloy, double wall, 32 hole, 25mm internal width, disc-specific
Speichen: DT Swiss Champion
Schalthebel: Shimano Di2 EN-605 electronic shifting switch, 5-speed
Sattel: Selle Royal Lookin EVO, Moderate Wide
Sattelstütze: Cannondale 3, 6061 Alloy, 31.6, 300mm (SM), 350mm (MD), 400mm (L & XL)
Lenkervorbau: Cannondale C1 Conceal, Alloy, 31.8, -6°, with SP-Connect SPC+ mount top cap
