Color 1: Saturn / Relic Metallic / Racing Silver

Color 2: Vortex Grey / Black / Charcoal Grey

FRAME

Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers

SIZES

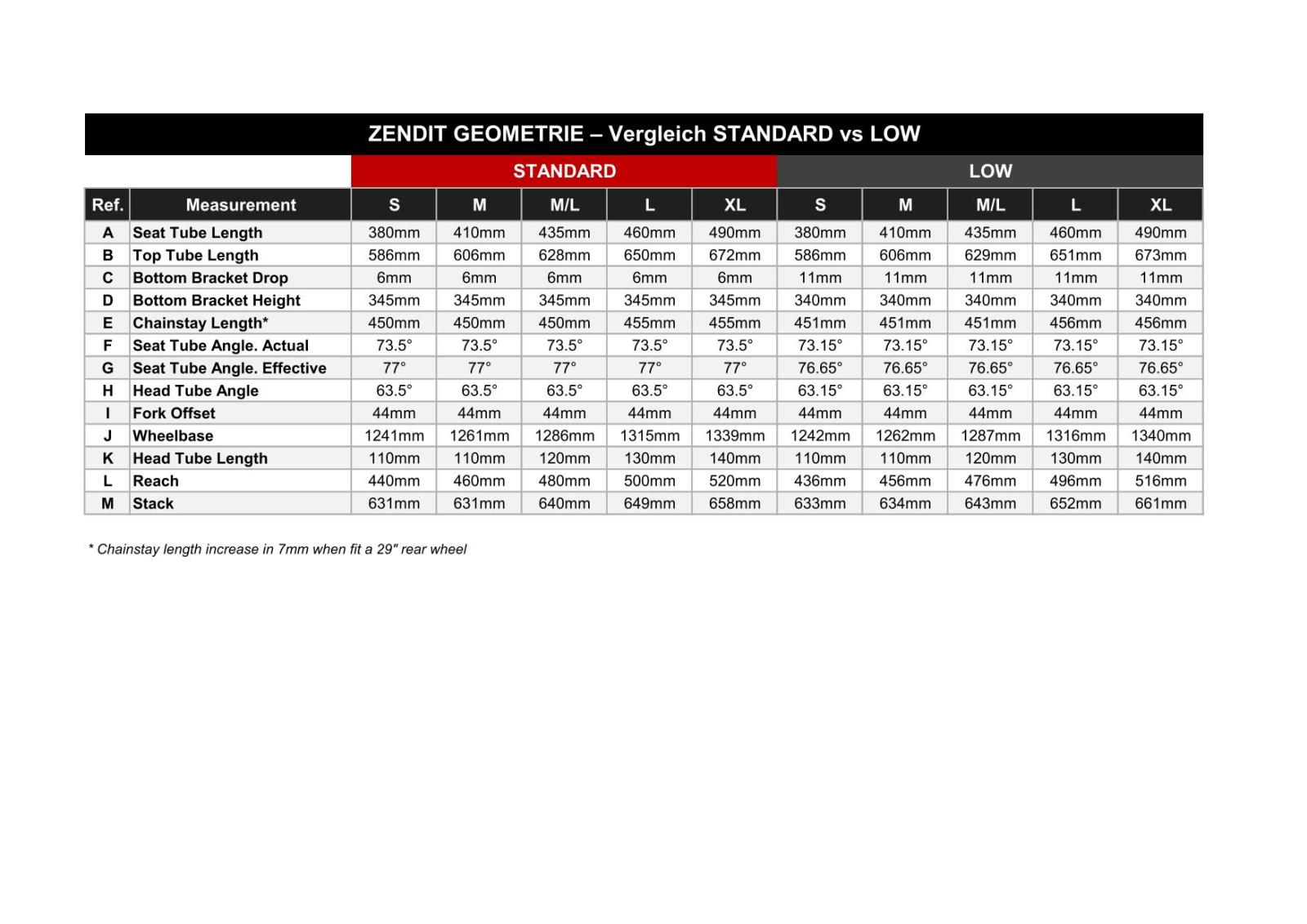

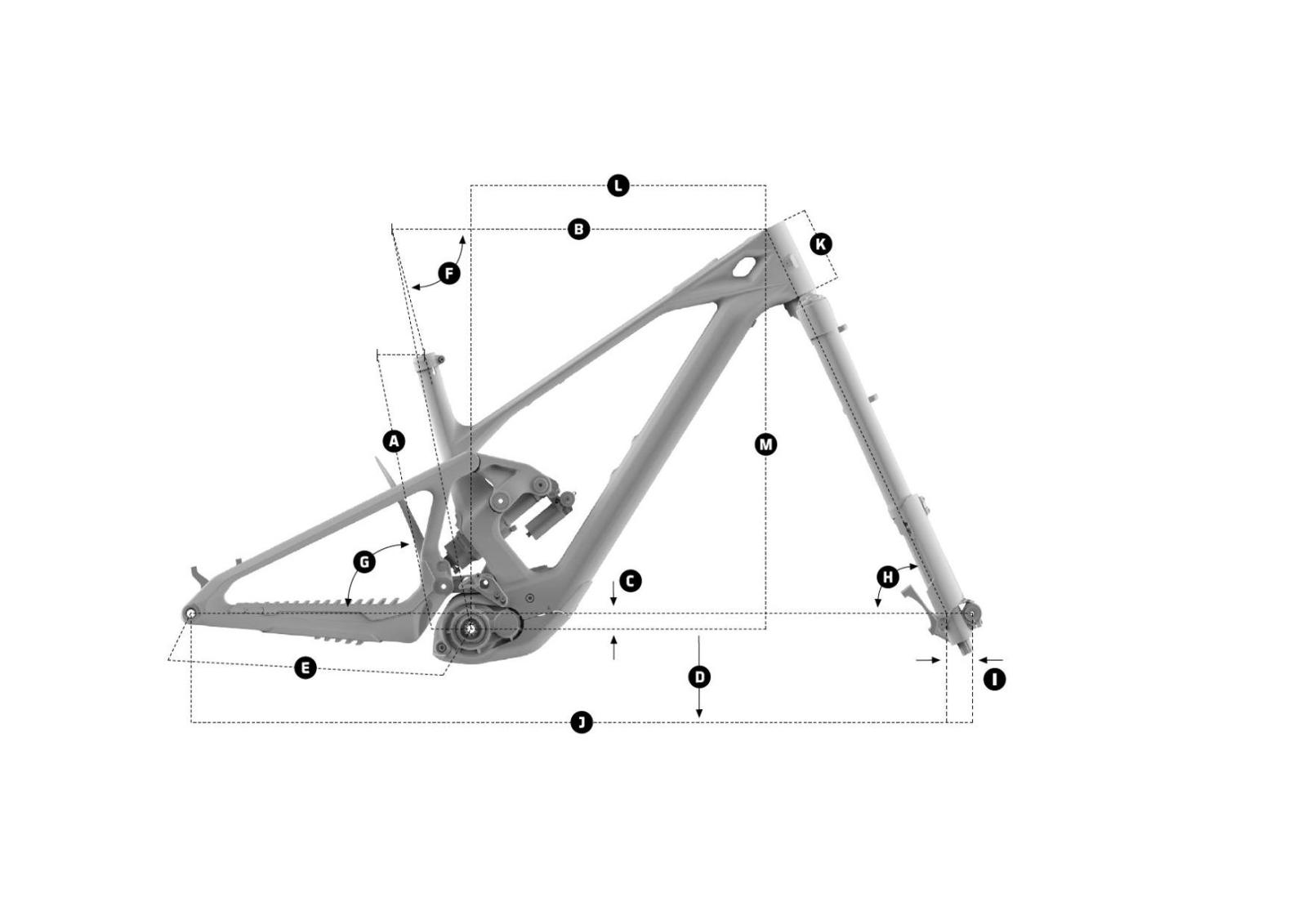

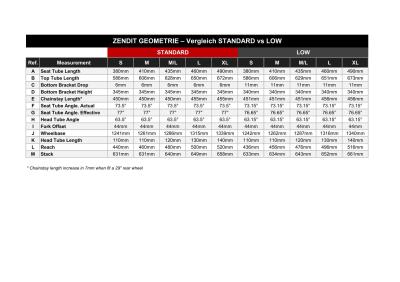

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

REAR SHOCK

Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compression (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

SHOCK SETTINGS

CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers

FORK

Fox 38 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload

FORK REMOTE

--

HEADSET

Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock

STEM

Onoff S6 30mm 0°, 6061 forged alloy + CNC, 31.8mm barbore

HANDLEBAR

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore. L and XL size: 38mm rise

GRIPS

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

SEATPOST

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing. S: 140-115mm, M: 160-135mm, ML: 180-155mm, L: 210-185mm, XL: 210-185mm

SADDLE

Ergon SM10 E-Mountain Black

FRONT BRAKE

Sram Maven Base, 18mm 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

REAR BRAKE

Sram Maven Base, 18mm 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

BRAKE LEVER

Sram Maven Base, Directlink and lever pivot bushings, tools-free reach adjust

RIMS

DT Swiss Hybrid H 1900 SPLINE, aluminum, hooked/crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes

SPOKES

DT Swiss Straightpull spokes, DT Hybrid I, black

FRONT HUB

DT Swiss 370, Boost 15x110mm, IS 6 bolts

REAR HUB

DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, HG freehub

FRONT TIRE

Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead

REAR TIRE

Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead

CRANKSET

e*thirteen Helix Race e*spec alloy. All sizes: 155mm

RINGS

Sram Eagle 36T T-Type, 104BCD, steel, CL55

BOTTOM BRACKET

--

PEDALS

--

CHAIN

Sram GX Eagle T-Type, 12s Flattop, w/Powerlock

FRONT DERAILLEUR

--

REAR DERAILLEUR

Sram S1000 Eagle AXS, T-Type, 12s

SHIFT LEVERS

Sram Eagle AXS Pod Controller w/discrete clamp, 12s

CASSETTE

Sram XS 1270, 10-52T, T-Type, 12s

MOTOR

Avinox M2S

BATTERY

Avinox 800Wh Battery / Avinox 4A Charger

DISPLAY

Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)

DERAILLEUR HANGER

--

OTHERS

Sram AXS Extension Cord

WEIGHT

22.8 Kg
