More Juice, No Excuse

The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.

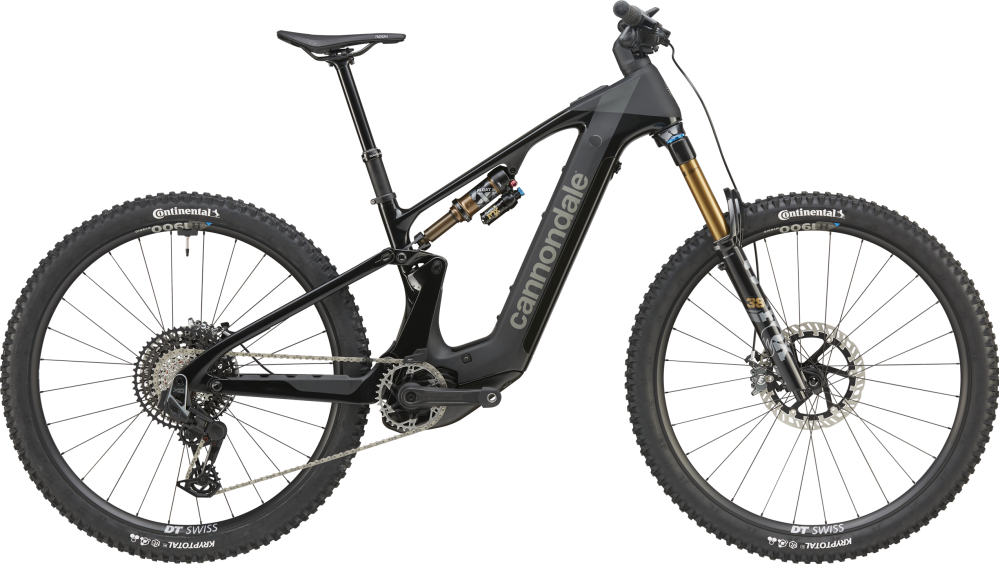

Moterra 1 balances brute strength with trail-savvy finesse. Featuring a new, lightweight, full carbon frame and 160/150mm of travel, it’s built for those who demand big power, silky smooth delivery, and absolute control. A Bosch CX motor with an 800Wh battery gives you the juice for even the biggest missions. A Kiox 500 display integrated into the stem keeps you connected, while the top-end Fox 38 Factory fork and Float X Factory shock soak up every bump. SRAM XO/GX AXS wireless shifting, Magura MT7 brakes, and robust DT Swiss H1900 wheels bring top-tier precision, making it the perfect blend of speed, style, and capability.

Highlights
A lightweight carbon fiber frame - Proportional Response size-specific suspension, tuned for specifically for the air shock and 29” wheels
Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
Top of the line Fox Factory suspension – 160mm Float Factory 38 fork and Float X Factory piggyback shock
Rugged DT Swiss H 1900 Spline EMTB Wheelset – Built to survive - 30mm inner width, 370 hubs with durable Ratchet LN internals
Wireless electronic shifting from a blended SRAM Eagle XO/GX AXS 12-speed group
Powerful, controllable stopping from Magura’s MT7 4-piston stoppers with 220/203mm rotors

Batterie: Bosch PowerTube, 800Wh
Ladegerät: Bosch 4A
Display: Top Tube System Controller w/ Bosch Kiox 500 & Mini Remote
Motor: Bosch Performance Line CX
Extras: Tubeless Valves, Bosch PowerMore range extender compatible
Rahmen: Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible
Kurbelsatz: e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
Gabel: Fox Float Factory 38, 160mm, GripX2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
Kette: SRAM GX T-Type, 12-speed
Bremsen: Magura MT7 4-piston hydraulic disc, 220/203mm MDR-P rotors
Bremshebel: Magura MT7 hydraulic disc
Umwerfer hinten: SRAM XO Eagle AXS, T-Type
Kassette: SRAM GX Eagle T-Type, 10-52, 12-speed
Dämpfer: Fox Float X Factory, Kashima coating, 2 pos adj, EVOL LV, 230x62.5mm
Lenker: HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
Steuersatz: Acros ICR, 1.5" to 1.8", sealed bearings
Griffe: Cannondale TaperRidge
Nabe: (F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 LN Ratchet System, 12x148mm thru-axle, 6-bolt
Pedale: Not Included
Reifen: (F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
Felgen: DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready)
Speichen: DT Swiss Competition, straight pull
Schalthebel: SRAM Eagle AXS T-Type Pod Controller
Sattel: Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail
Sattelstütze: Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Lenkervorbau: Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0°
